TenCate Advanced Composites
A leading developer and manufacturer of advanced composite materials
jec world - the launch of next generation COMPOSITE MATERIALS
aEROSPACE
TenCate Cetex® TC1225 Engineered PAEK UD tape, fabric semi-preg and RTL laminate
Delivers excellent mechanical performance and allows a reduction in processing temperature by 50-75°C compared to other composites within the PAEK family of thermoplastic matrices.
TenCate TC380 Toughened epoxy OOA / VBO fabric prepreg and UD tape
Delivers a unique combination of high impact resistance, superior hot / wet performance and open hole compressive strength that allows the design of highly efficient aircraft structures.
HIGH PERFORMANCE INDUSTRIAL
TenCate E732 Toughened snap cure fabric prepreg
Achieves a full Tg of 170°C (338°F) in 4 minutes at 160°C (320°F), developed specifically for press mold processing. Ideal for high volume industrial applications.
In addition, we showcased TenCate AmberTool® HXR series, a multi-axial composite tooling prepreg which significantly reduces layup time while maintaining the easy handling of single ply tooling prepregs. The HXR series has been specifically designed to facilitate complex tool construction while allowing efficient lay-up, reducing the overall tooling costs.
5000 clips
made from TenCate Cetex® TC1100 carbon / PPS on every A350 XWB
Swipe to the next page
2 / 11
3 / 11
TenCate Cetex® TC1225
A new product for aerospace
ENGINEERED PAEK UD TAPE, SEMI-PREG AND RTL LAMINATE
TenCate Cetex® TC1225 is a next generation PAEK family development, that delivers high performance mechanical strength while allowing lower processing temperatures for aerospace applications.

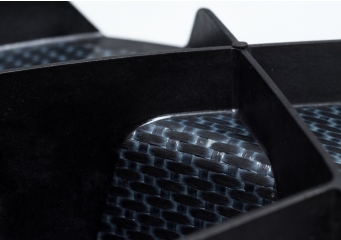

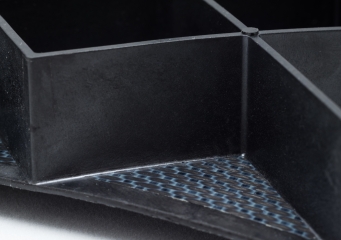

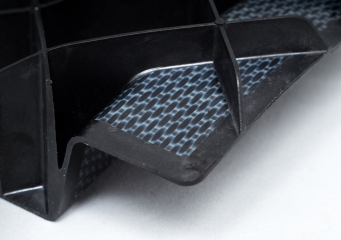

This system can be overmolded with PEEK for fine details which enables form freedom and cost effective part consolidation in the highest performance applications.
Available in carbon-based UD tape, RTL laminates and semi-preg fabric formats.
PRODUCT BENEFITS / FEATURES
> Compression After Impact (CAI) 41 ksi (282 MPa)
> Improved processing temperature with good high temperature performance
> Suitable for overmolding with PEEK to achieve hybrid part consolidation
> Ideal for structural applications
Swipe to the next page
3 / 11
4 / 11
TenCate TC380
A new product for aerospace
Toughened epoxy ooa / vbo prepreg and ud tape
TenCate TC380 delivers a unique combination of impact resistance and open hole compressive strength that allows for the design of highly efficient aircraft structure.
PRODUCT BENEFITS / FEATURES
> High Compression After Impact (CAI) 42 ksi (289 MPa)
> Excellent open hole compressive strength 45 ksi (310 MPa) and fracture toughness
> Excellent hot / wet strength retention at 121°C (250°F) service temperature
> Ideal for aerostructure applications on helicopters, UAVs and military aircraft
Swipe to the next page
4 / 11
5 / 11
TenCate E732
A new product for high performance industries
Toughened epoxy snap cure prepreg
TenCate E732 achieves a full Tg of 170°C (338°F) in 4 minutes at 160°C (320°F), for press molding processing. Suitable for high volume industrial applications.
PRODUCT BENEFITS / FEATURES
> Hot-in hot-out press mold processing
> Full Tg of 170°C (338°F) in 4 minutes at 160°C (320°F)
> Good surface finish and aesthetics
> Controlled resin flow for ease of processing
> Short cure cycles between 120°C (248°F) to 160°C (320°F)
> Low tack for easy lay-up
Swipe to the next page
5 / 11
6 / 11

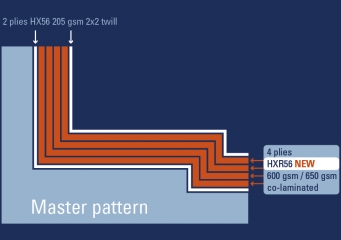

TenCate AmberTool® HXR series of multiaxial tooling prepregs
Designed for where complexity and speed are required
REDUCING LAY-UP TIME AND MAINTAINING HANDLEABILITY
At the JEC we showcased our TenCate AmberTool® HXR series, a multi-axial format of our heritage AmberTool® range which significantly reduces lay-up time, while maintaining the easy handling of single ply tooling prepregs.
This series has been specifically designed to facilitate complex tool construction while allowing efficient lay-up, reducing overall tooling costs.
Benefits:
> Rapid 1-4-1 lay-up, reduced debulks in comparison to standard lay-ups
> Intrinsically quasi-isotropic
> Pliable at ambient temperatures
> Excellent surface finish
Swipe to the next page
6 / 11
7 / 11

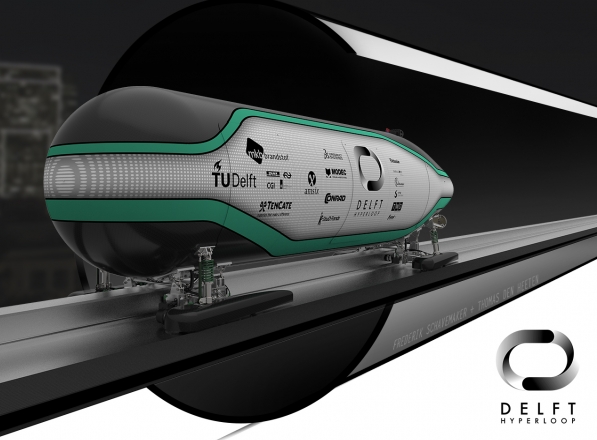

Introducing the world's first Hyperloop pod competition winner
technical university of delft
TU Delft achieved first place in the inaugural SpaceX Hyperloop Competition Weekend, January 27-29, 2017. In addition they won the award for best construction and design. The Delft Hyperloop pod was the first to be designed using carbon fiber composites.

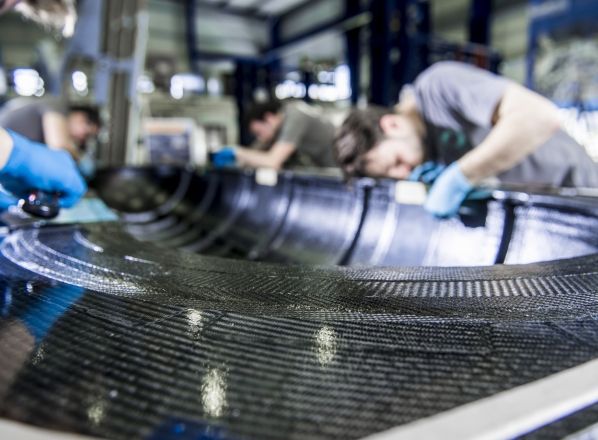

On display was the Delft Hyperloop pod. TenCate was proud to have been a materials sponsor. TenCate's 8020 series of epoxy prepreg, film adhesive and honeycomb core were utilized in the manufacture of the pod’s monocoque.
HALF-SCALE DELFT HYPERLOOP POD
> 4.5 metres long
> 0.8 metres in diameter
> Strong yet lightweight, pod weighing only 149 kg
WHERE MATERIALS MEET INNOVATION
The Hyperloop concept, coined in 2013, was described as the “fifth mode of transportation”, combining the convenience of rail with the speed of air travel. The SpaceX Hyperloop pod competition has an ethos of sharing knowledge and promoting partnership and innovation.
Swipe to the next page
7 / 11
8 / 11

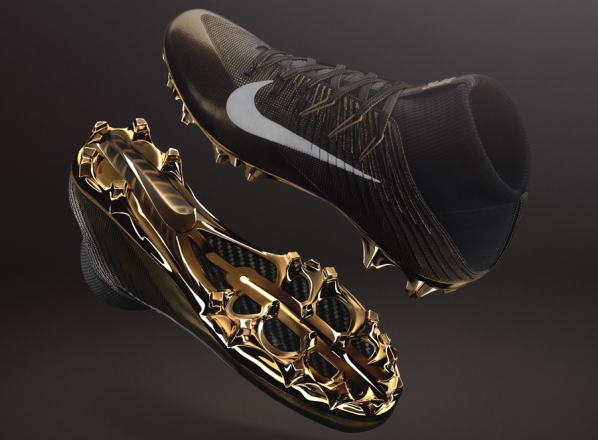

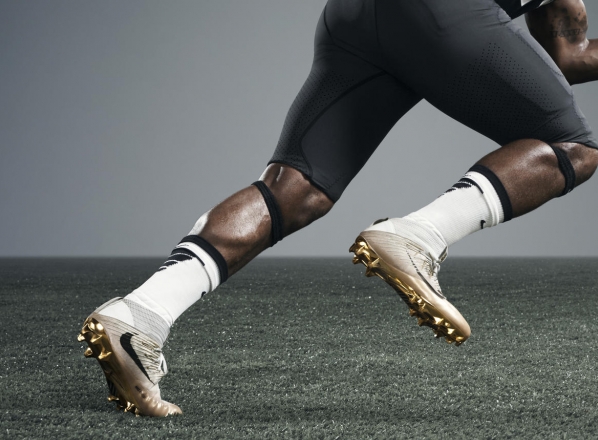

Cetex® for high performance sports footwear
Nike GOLD VAPOR CLEATS - SUPER BOWL 50 EDITION
TenCate Cetex® TC950 TW1000 Carbon / glass twill weave PMMA pigmented gold was used to manufacture the special edition cleats.
Advantages:
> Built for multi-directional movement
> Enables efficient forward propulsion
> Simultaneously disperses upward pressure throughout the forefoot
> Reduces impact
> Optimizes performance on the field
Did you know that TenCate's Cetex thermoplastic composites were on the first Nike Air Jordan's? Since then, millions of high end athletic shoes use TenCate's materials in the inner and outer sole for torsional rigidity and comfort.
Images courtesy of NIKE
Swipe to the next page
8 / 11
9 / 11

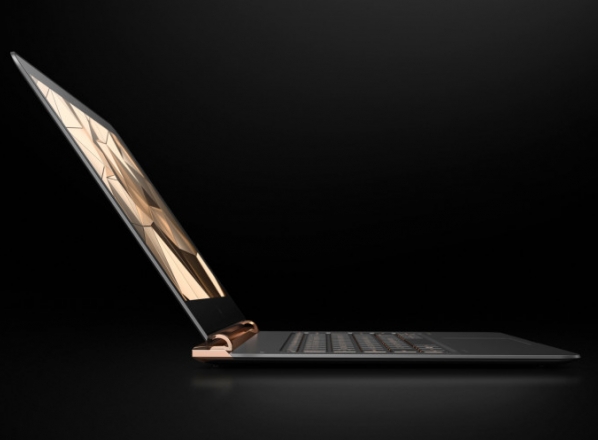

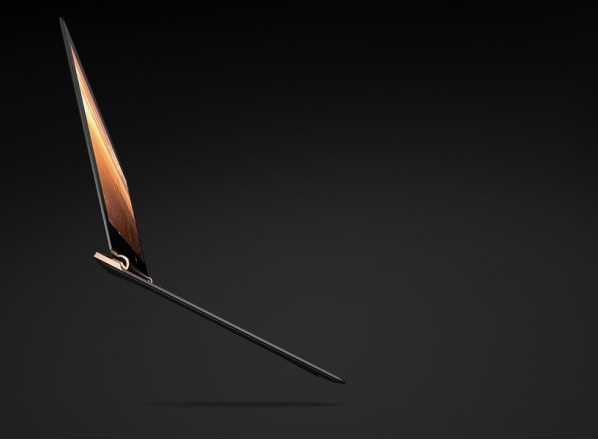

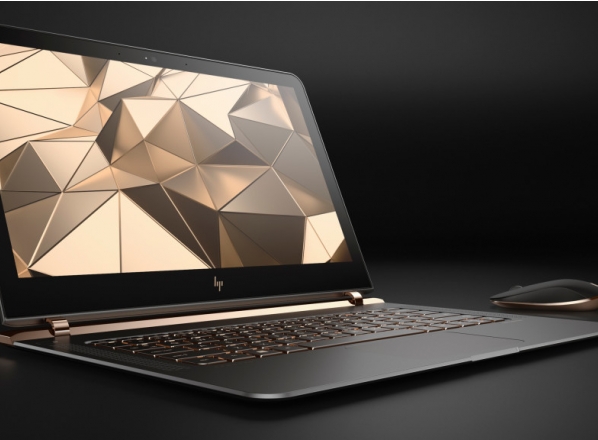

The world's thinnest laptop
HP SPECTRE 13 ULTRABOOK D
TenCate Cetex® TC920 carbon PC/ABS was selected by Hewlett Packard to achieve a light weight, thin profile and to dissipate heat when in operation on a user’s lap.
HP SPECTRE
> Weighs only 1.1 kg (2.45 lb)
> The world's thinnest laptop at 10.4 mm overall thickness
PRODUCT BENEFITS / FEATURES
> Inherently fire retardant, meeting UL-94 V0 standards without secondary fire retardant fillers
> Dissipates heat
> Lightweight yet impact resistant
Images courtesy of HP
Swipe to the next page
9 / 11
10 / 11

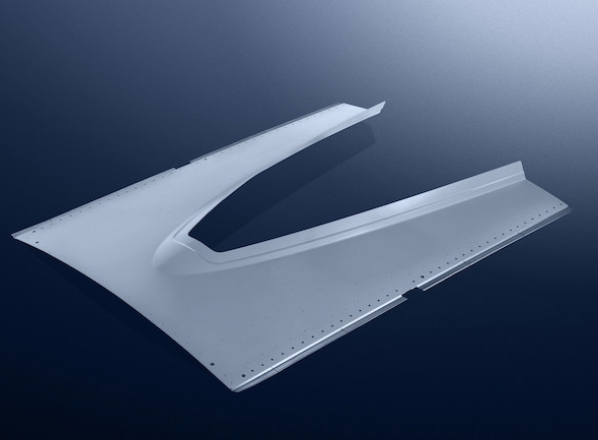

Engine pylon cover
AIRBUS A380
On display was a full size Airbus A380 engine pylon cover, manufactured by Daher Socata (Nantes, France) using TenCate Cetex® TC1100 PPS / carbon laminate.
This part is one of 50 panels on each A380 pylon for both engines, and features an infused bronze mesh top layer for lightening strike protection.
Advantages:
> Outstanding toughness
> Excellent chemical and solvent resistance
> Inherently flame resistant with low smoke emission, achieves 35/35 OSU
> Qualified at Airbus and Boeing and utilized in multiple structural applications
> Processable by press stamp forming - allowing high volume rates for pylon cover production
Swipe to the next page
10 / 11
11 / 11
2017 tradeshow calendar
AUVSI Xpontential 2017
Dallas, TX, USA
May 8th - 11th
SAMPE CHINA
Beijing, China
May 10th - 12th
SAMPE TECH 2017
Seattle, WA, USA
May 22nd - 25th
PARIS AIR SHOW
Le Bourget, France
June 19th - 23rd
CAMX
Orlando, FL, USA
September 11th - 14th
COMPOSITES EUROPE
Stuttgart, Germany
September 19th - 21st
ADVANCED ENGINEERING
Birmingham, UK
November 1st - 2nd
